Description

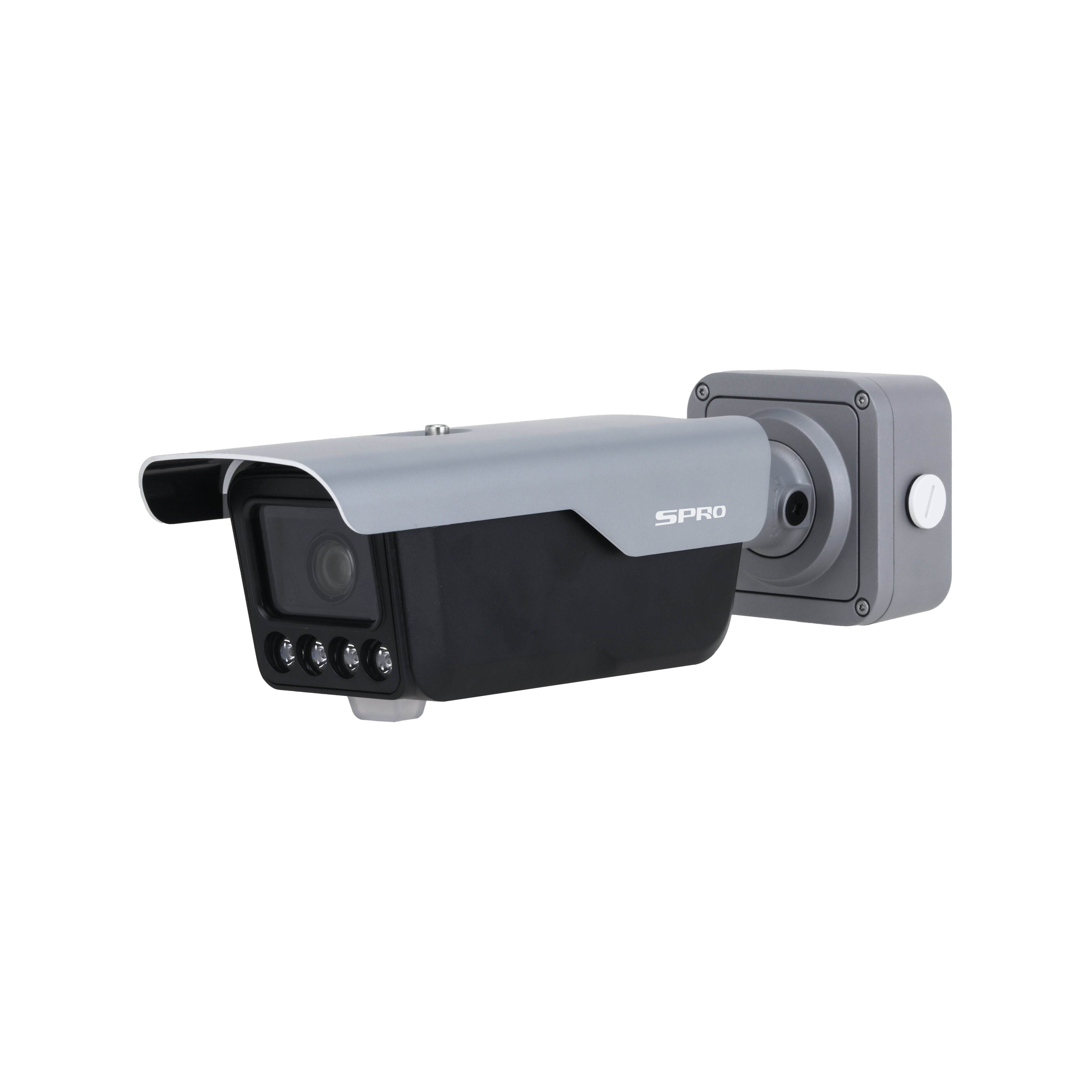

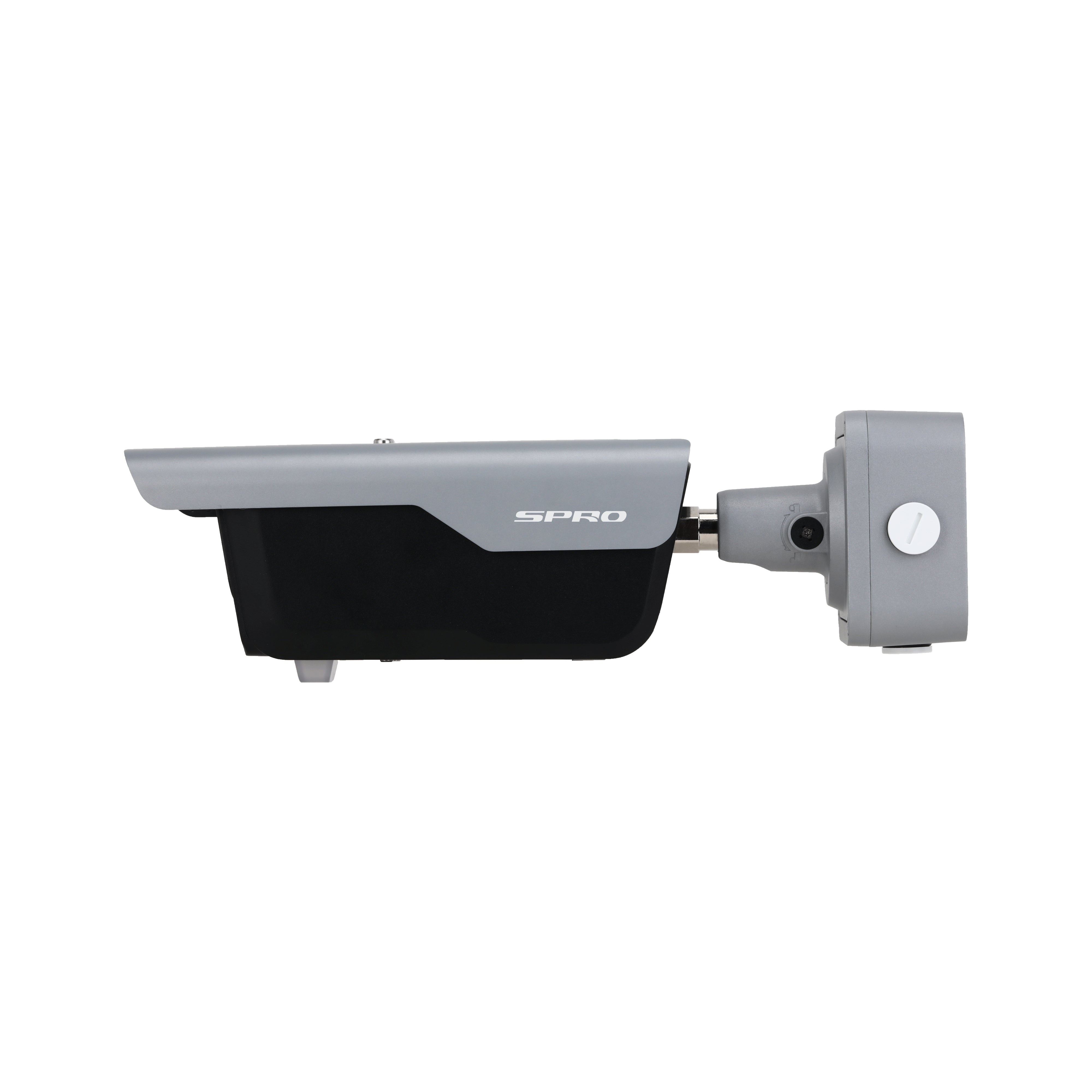

Part Number:  DHANPRIPQ40/0832R
Brand:  SPRO
Camera Resolution  4 Megapixels
Lens  Motorised Lens
Codec recording  H.265
Analytics  ANPR
Style  Bullet
ANPR  Yes

Capture and store license plate data with SPRO ANPR cameras, perfect for monitoring car parks and driveways. These cameras can also be used to create black/white lists, which can be used to regulate access at barriers. The DHANPRIPQ40/0832R offers the additional feature of recording onto a micro SD card, eliminating the need for an NVR.

The maximum speed in which the DHANPRIPQ40/0832R can read and record number plates is 74mph (120 km/h) and can be installed between 8 to 30 meters away from the target area. This cutting-edge technology offers a lightning-fast reading and recording speed of up to 74mph (120 km/h), making it the ideal choice for installations between 8 and 30 meters away.

Specifications:
Model Number DHANPRIPQ40/0832R
Image Sensor 1/1.8" CMOS
Image Resolution 2688 x 1520
Electronic Shutter Speed Auto / Manual 1/25 s-1/100,000s
Max. Detection Speed 120km/h / 74mph
Max. Illumination

0.001 Lux@F1.6 (Colour, 30 IRE)

0.0002 Lux@F1.6 (B/W, 30 IRE)

0 Lux (Illuminator on)
RAM 4Gb
ROM 1Gb
S/N Ratio >56dB
Scanning System Progressive scanning
Lens
Focal Length 8 mm–32 mm
Field of View H: 39.9° (W)—15.1° (T) V: 21.8° (W)—8.5° (T) D: 46.6° (W)—17.4° (T)
Focus Control Auto, area focus, manual
Number of Lens 1
Lens Type Motorised Vari-focal
Max. Aperture 1.6
Iris Control P-Iris
DORI Distance

W:
Detect: 160.0 m  (524.93 ft)
Observe: 64.0 m (209.97 ft)
Recognise: 32.0 m (104.99 ft)
Identify: 16.0 m (52.49 ft)

T:
Detect: 406.9 m (1334.97 ft)
Observe: 162.8 m (534.12 ft)
Recognise: 81.4 m (267.06 ft)
Identify: 40.7 m (133.53 ft)
Illuminator
Illuminator Number 4
Illuminator On/Off Control Auto, Manual
Illuminator Type Dual Illuminators (730 nm IR/warm light)
Illuminator Distance ANPR: 30 m (98.43 ft) Video monitoring: 60 m (196.85 ft)
Smart Illumination According to the brightness of the environment, the camera
automatically adjusts the intensity of its light to reveal the details
of moving targets. Devices with warm light can automatically
adjust the light intensity according to the time.
Infrared Wavelength 730 nm
Video
Video Resolution Main stream: 4M (2688 × 1520)/1080p (1920 × 1080)/720p (1280 × 720)
Sub stream: 720p (1280 × 720)/960H (960 × 576, 960 × 480)
/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240)
Stream PAL: Main stream (2688 × 1520@25 fps, 1920 × 1080@25 fps,
1280 × 720@25 fps), sub stream (1280 × 720@25 fps, 960 × 576@25 fps,
704 × 576@25 fps, 352 × 288@25 fps);
NTSC: Main stream (2688 × 1520@30 fps, 1920 × 1080@30 fps,
1280 × 720@30 fps), sub stream (1280 × 720@30 fps, 960 × 480@30 fps,
704 × 408@30 fps, 352 × 240@30 fps)
Video Compression H.264H; H.264B; H.264M by default; H.265; MJPEG; H.264M
Video Bit Rate H.264M: 2,179 kbps–13,074 kbps
H.264H: 2,179 kbps–13,074 kbps
H.265: 2,179 kbps–13,074 kbps
MJPEG: 6,537 kbps–39,223 kbps
Scene Self-adaptation (SSA) Yes
Gain Control Manual; Auto
Noise Reduction 3D NR
Region of Interest (RoI) Yes, 3
Image Tampering Prevention Yes. Watermarks can be added to video and images. The
watermark can also be verified.
Bit Rate Control CBR; VBR
Function
Storage Built-in TF card port. Supports Kingston 16 G, 32 G, 128 G, 256 G
Restricted List / Trusted List Allow list: 110,000 Blocklist: 110,000
IVS Intrusion detection, loitering detection, up to 4 areas can be set.
Basic Event Alarms for events of defocus, no storage card error, network
disconnection, IP conflict, and illegal access.
Sound and Light Alarm Yes, blue & red indicator, and supports broadcasting custom audio.
Alarm Linkage Upload to FTP/Memory card, notify monitoring centre, send e-mail,
trigger alert output, snapshot and active deterrence.
Capture Distance 8 m–30 m (26.25 ft–98.43 ft)
Detected Width 6 m–8 m (19.69 ft–26.25 ft)
Network
Network Protocol HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP;
DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP; PPPoE
API Yes
SDK Yes
Interoperability ONVIF (Profile S/Profile T); CGI; ITSAPI; P2P
Management Software DMSS
Security Username and password; MAC address; HTTPS; IEEE 802.1x;
network access control
Browser IE; Chrome; Firefox
Image Encoding Format JPEG
Image Setting Brightness; contrast; saturation; gamma; sharpness; gain; white balance
Day / Night IR filter, support three modes: Colour ; B/W; auto
WDR 140 dB
HLC Yes
BLC Yes
White Balance Auto; Regional Custom; Manual; Outdoor; Natural; Street Lamp
Digital Detail Enhancement Yes
OSD Overlay Supports overlay of time; address (position of channel), lane (number/direction), plate (number and colour), vehicle (speed, colour, type)
Audio
Audio Port Yes
Built-in MIC Yes; Pick-up distance: 3m (9.84ft), Sampling Rate:48k
Built-in Speaker Yes; Power:2W
Port
Audio Output 1 channel (RCA port)
Network Port RJ-45 (10/100/1000 self-adaptive Ethernet Port)
Alarm Input 2, optocoupler input (wet node on-off value: 5 V)
Alarm Output 2, relay output (2A 30 VDC/0.5A 125 VAC), which can be connected to devices such as barriers
RS-485 2 (half duplex, Transparent, DHRS, Push Data through Serial Port)
Reset Button Yes
Wiegand 1 channel, SHA-1 26 bit
Performance
Max. Number of Passed Vehicles 10,000
Max. Number of Connections 10
Intelligence
AI Recognition Recognised vehicle types, vehicle signs, vehicle colour,
vehicle plate, vehicle without plate.
Video Metadata Displays the intelligent frame, plate and vehicle paths.
Vehicle Brand

Recognises 147 vehicle logos.
Vehicle Type Recognition

Recognises 10 vehicle types: Large bus, heavy Truck, medium truck,
sedan, van, light truck, medium bus, SUV, MPV, Pickup
Vehicle Colour

Recognises 12 vehicle colours: Grey, black, white, silver, blue, green, purple, red, orange, pink, brown and yellow.
Country and Region
Supported by ANPR		 Baseline support:
GCC (U.A.E., Saudi Arabia, Morocco, Oman, Iraq, Egypt, Jordan,
Qatar, Kuwait, Bahrain, Lebanon)
Europe (Netherlands, France, Germany, Britain, Italy, Poland,
Belgium, Bulgaria, Serbia, Slovakia, Spain, Denmark, Turkey, Israel,
Czech Republic, Bosnia and Herzegovina, Switzerland, Austria,
Hungary, Romania, Lithuania, Latvia, Sweden, Estonia, Portugal,
Greece, Slovenia, Luxembourg, Palestine, Lebanon, Ireland, Finland,
Norway, Croatia, North Macedonia)
Russian-speaking regions (Russia, Ukraine, Kyrgyzstan, Uzbekistan,
Moldova, Lithuania, Latvia, Georgia, Azerbaijan, Turkmenistan)
SADC (Uruguay, Paraguay, Brazil, Argentina, Chile, Colombia, Peru,
Ecuador, Guyana)
North America (United States, Canada)
Can be customized:
Mongolia, Japan, Philippines, Vietnam, Laos, Cambodia, Myanmar,
Thailand, Malaysia, Singapore, Indonesia, Bangladesh, India,
Pakistan, Curacao, Mexico, Guatemala, Costa Rica, Australia,
New Zealand, Tunisia, Algeria, Ethiopia, Tanzania, Uganda,
Equatorial Guinea, Nigeria, Zambia, Mozambique, South Africa,
Mauritius
Capture Rate In the recommended installation and lighting condition, the
vehicle capture rate ≥ 99%
Recognition Rate In the recommended installation and lighting condition, the
recognition rate for positive and departing vehicles ≥ 96%; the
recognition rate for European vehicle plates ≥ 98%
Performance
Remote Control Yes
Communication Band 433MHz; 868 MHz
Remote Control Distance 15m (49.21 ft) (In an open, undisturbed environment)
Power Supply 12 VDC, 2 A and POE:802.3at,Type 2,Class 4,(44V to 57V),
0.455A to 0.351A,max.20W
Power Consumption Power consumption in different conditions:
No lighting < 6 W
Lighting <12 W
Speaker and Red/Blue Light Warning on < 17 W
Protection IK10; IP67
Material Aluminum alloy body + Plastic
Product Dimensions 395.0 mm × 120.8 mm × 127.8 mm (15.55" × 4.76" × 5.03") (L × W × H)
Net Weight 2.3 kg (5.07 lb)
Gross Weight 3.2 kg (7.05 lb)
Storage Humidity –40 °C to +70 °C (–40 °F to +158 °F)
Storage Temperature ≤ 95% (non-condensing)
Operating Temperature –30 °C to +65 °C (–22 °F to +149 °F)
Operating Humidity 10%–90% (non-condensing)
Certifications CE-EMC; CE-LVD; CE-RED; FCC
