Description

Part Number:  DHIPD80/28RV-W-V3
Brand:  SPRO
Camera Resolution  8 Megapixels
Lens  Fixed Lens
Codec recording  Smart H.265+ Smart H.264+
IR Distance  Up to 30m IR distance
Audio over CAT5e  Yes
Ingress Protection  IP67
Style  Vandal Resistant Dome

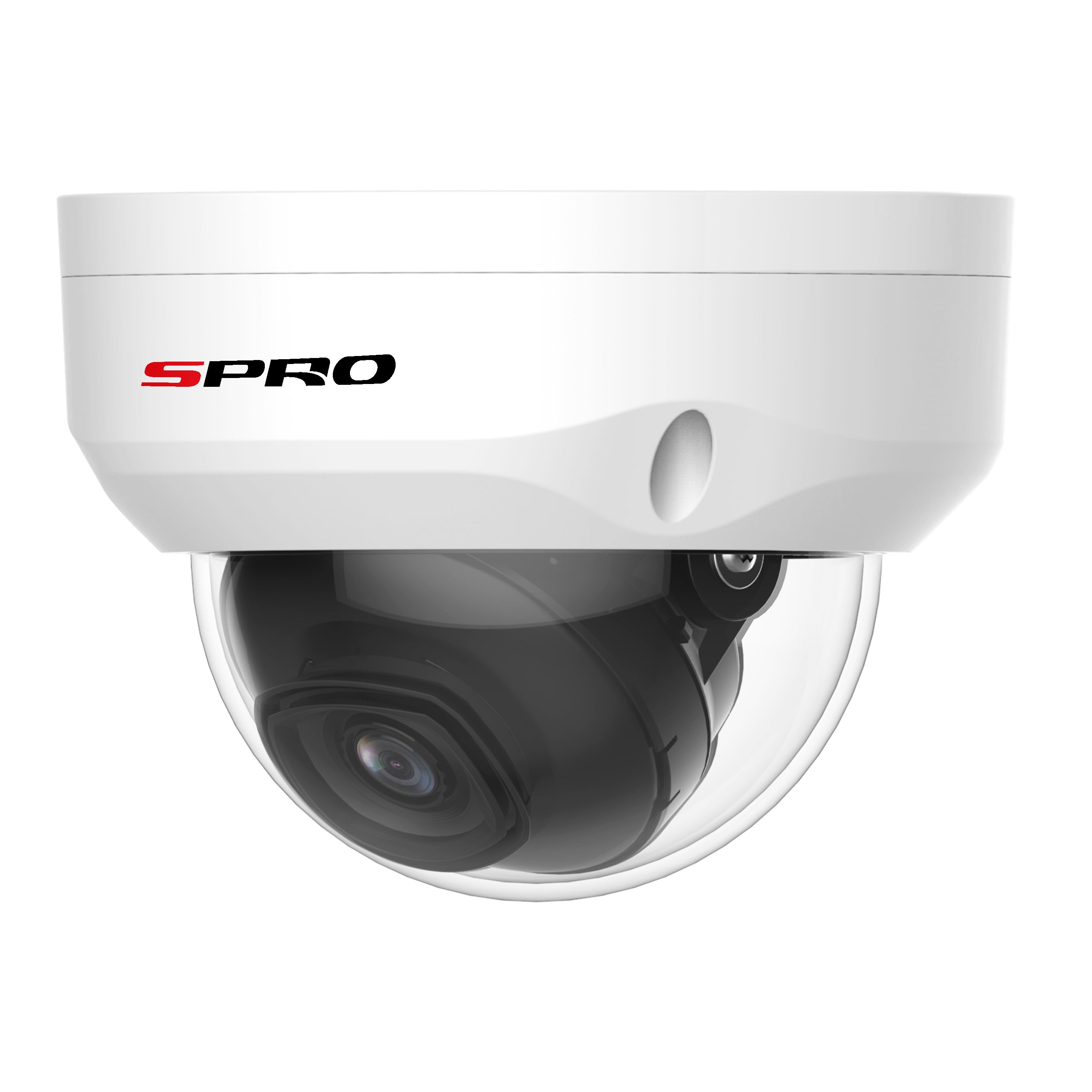

The SPRO 8MP IP Vandal Resistant Dome boasts a sharp 8MP CMOS sensor paired with a 2.8mm fixed lens. Designed for durability, it offers a 30m IR distance, ensuring clear night vision. Its robust build is both IP67 waterproof and IK10 resistant, making it ideal for locations prone to vandalism and harsh weather conditions. The "Starlight" feature further enhances its low-light performance. This camera combines resilience with top-tier imaging for unmatched security.

Key Features:

  • 8MP, 1/2.7" CMOS image sensor
  • 3840 × 2160 @15 fps, 2688 x 1520 @25/30 fps
  • H.265
  • 30 m IR distance
  • RoI, SMART H.264+/H.265+
  • Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking• Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
  • 12V DC/PoE power supply
  • IP67 and IK10 protection
Specifications:
Model Number DHIPD80/28RV-W-V3
Image Sensor 1/2.7" CMOS
Effective Pixels 3840 (H) × 2160 (V)
ROM 16 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto / Manual 1/3 s-1/100,000 s
Min. Illumination
0.04 Lux@F2.0 (Colour, 30 IRE); 0.004 Lux@F2.0 (B/W, 30 IRE); 0 Lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance 30 m (98.43 ft) (IR)
Illumination On/Off Control Auto; Manual
Illumination Number 3 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–355° - Tilt: 0°–65° - Rotation: 0°–355°
Lens
Lens Type Fixed-Focal
Lens Mount M12
Focal Length 2.8mm
Max Aperture 2.0
Field of View 2.8 mm: Horizontal: 106°; Vertical: 56°; Diagonal: 125°
Iris Control Fixed
Close Focus Distance 1.0 m (3.3 ft)
DORI Distance



Detect: 74.7 m (245.1 ft)
Observe: 29.9 m (98.1 ft)
Recognise: 14.9 m (48.9 ft)
Identify: 7.5 m (24.6 ft)


Video
Video Compression  H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate



Main stream:
3840 × 2160 (1 fps–15 fps)
2688 × 1520 (1 fps–25/30 fps)
Sub stream:
704 × 576 (1 fps–25 fps)
704 × 480 (1 fps–30 fps)
*The values above are the max. frame rates of each stream; for
multiple streams, the values will be subjected to the total
encoding capacity.


Stream Capability  2 streams
Resolution



3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048);
3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944);
2688 × 1520 (2688 × 1520); 3M (2048 × 1536);
2304 × 1296 (2304 × 1296); 1080p (1920 × 1080);
1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480);
VGA (640 × 480); CIF (352 × 288/352 × 240)


Bit Rate Control CBR/VBR
Video Bit Rate



H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps


Day/Night Auto(ICR) / Colour / B/W
BLC  Yes
HLC Yes
WDR DWDR
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (ROI) Yes (4 areas)
Smart Illumination Yes
Image Rotation  0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Alarm
Alarm Event Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast
Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestone
User/Host 6 (total bandwidth: 48M)
Storage FTP
Browser IE; Chrome; Firefox
Management Software DMSS
Mobile Client iOS; Android
Certifications
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption
Basic: 2.5W (12V DC); 2.9W (PoE)
Max. (ICR + H.265 + max. resolution + main stream +
DWDR + IR intensity): 5.3W (12V DC); 5.8W (PoE)
Environment
Operating Temperature  –40°C to +60°C (–40°F to +140°F)
Operating Humidity ≤ 95%
Storage Temperature –40°C to +60°C (–40°F to +140°F)
Protection IP67; IK10
Structure
Casing Metal
Product Dimensions 81 mm × Φ109.9 mm (3.19" × Φ4.33")
Net Weight 0.30 kg (0.7 lb)
Gross Weight 0.44 kg (1.0 lb)
