About
Description
Part Number: DHDVR12-B5-V4-0TB
Brand: SPRO
Recorder Resolution 5MP-Lite
Audio over co-ax On each channel
SMD (Smart Motion Detection) Yes
Perimeter Protection Yes
Tripwire Yes
Intrusion Yes
Face detection 2.0 Yes
BNC Channels 8 Channel
Extra IP Channels 4 Channel
Smart Dual Illumination Supported Yes

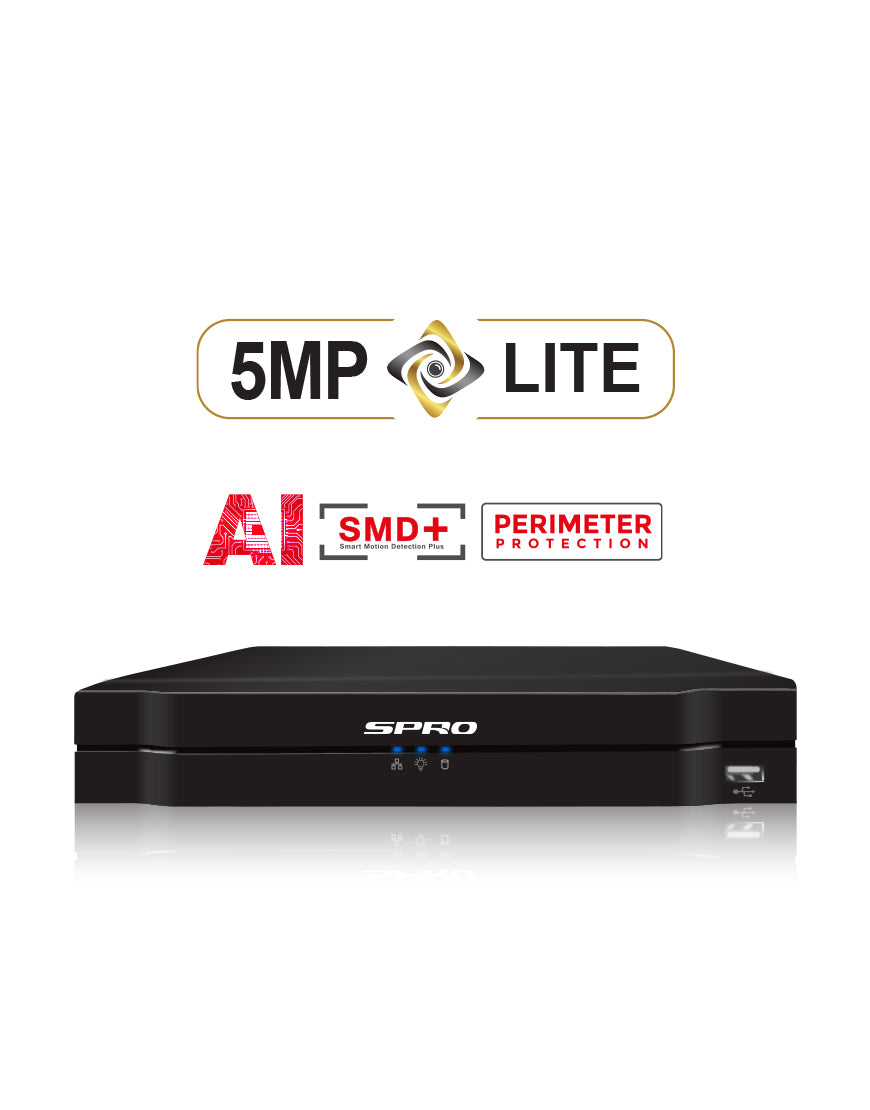

Elevate your security system with the SPRO B5 5MP –Lite DVR. This 8-channel DVR is designed for versatility, supporting 5 different camera inputs. with enhanced AI capabilities. Utilise Smart Motion Detection Plus to reduce false alarms and Perimeter Protection for advanced intrusion detection. Keep your property secure with additional features such as Face Detection, Intrusion and Tripwire analytics.
This device also supports 2-way audio for interactive communication and PTZ control to manoeuvre cameras remotely. Along with its 8 BNC channels, The SPRO B5 offers the flexibility to connect an additional 4 IP cameras via the local network, accommodating a total of 12 cameras for comprehensive surveillance coverage.
Experience unparalleled surveillance and protection with SPRO B5 5MP-Lite 8 Channels 5in1 with AI. With Smart Motion Detection Plus, Perimeter Protection, and advanced analytics like Face Detection, Intrusion, and Tripwire, this versatile DVR is built with state-of-the-art technology for reliable and efficient intrusion detection.
Enjoy interactive communication and remote control capabilities with 2-way audio and PTZ control, ensuring complete coverage of your property. And with the flexibility to connect up to 12 cameras, including 4 IP cameras, you'll have comprehensive surveillance and peace of mind.
| Specifications: | |
|---|---|
| Model Number | DHDVR12-B5-V4 |
| Main Processor | Industrial-grade processor |
| Operating System | Web; Local GUI |
| Perimeter Protection | |
| Perimeter Performance AI by Recorder |
Advanced Mode: 2 channels, 10 IVS rules for eachchannel General Mode: 4 channels, 10 IVS rules for each channel |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder |
2 channels (up to 8 face images/s) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 10000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries®ions and state can be added to each face picture |
| Face Recognition Performance of AI by Recorder (Number of Channels) |
2 channels |
| SMD Plus | |
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change |
| AI Video Quality Analytics | |
| AI Video Quality Analytics by Recorder |
8 channels: Supports detecting brightness levels, colour casts, defocus, overexposure, contrast levels, black and white. |
| Scene Changing | |
| Scene Changing by Recorder | 1 channel |
| Audio and Video | |
| Analogue Camera Input | 8 BNC ports, supports HDCVI/AHD/TVI/CVBS autodetect |
| Camera Input | 1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. 2. TVI: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
| IP Camera Input |
Up to 12 channels of IPC access |
| Encoding Capacity | Main stream: 5MP Mode: 4-ch 5MP@(1-6fps); other channels 5MN@( 1-12fps） 5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: D1/CIF@(1 fps–15 fps) |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome, IE9 or later, Firefox |
| Network Mode | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Record Mode | General; alarm; motion detection; intelligent; POS |
| Recording Playback | 1/4/9 It changes to 1/4 split when Face or IVS&SMD is selected in AI Mode. |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Alarm | |
| General Alarm | Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email |

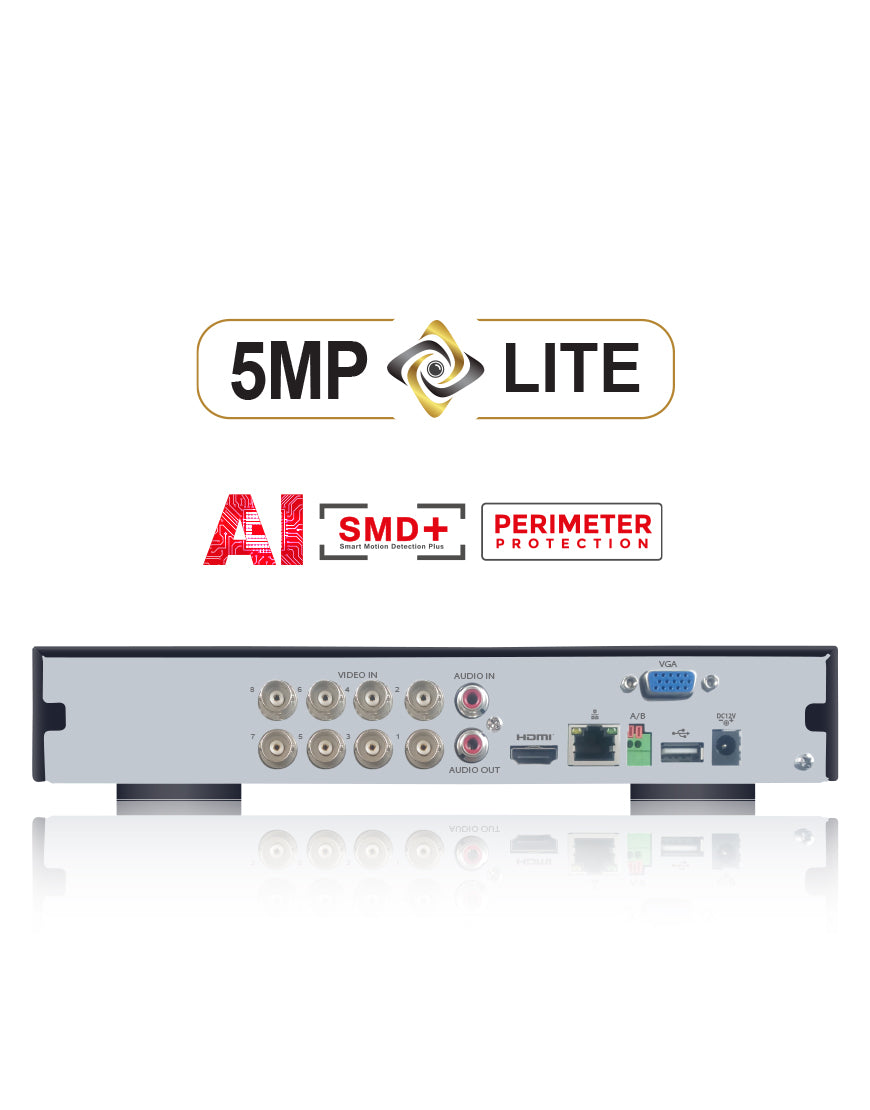

| Ports | |
| Audio Input | 1-channel RCA 8-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature. |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | <7W (without HDD) |
| Net Weight | 0.97 kg (2.14 lb) |
| Gross Weight | 1.39 kg (3.07 lb) |
| Product Dimensions | 260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.37" × 1.87") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Installation | Desktop |
| Certifications | CE: CE-LVD: IEC 62368-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024, EN 55035 |
| Operating Temperature | -10°C ~+55°C / 0%~90% (RH) |
